Model Name

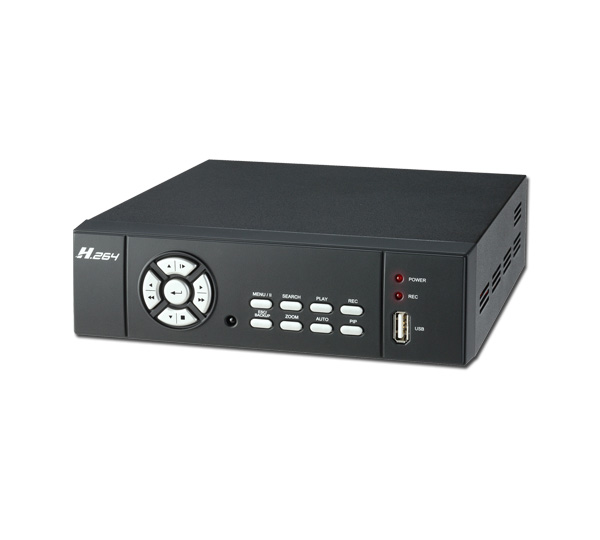

RYK-9240

Video System

NTSC / PAL Auto Detec or fixed by software

Video Input

4CH BNC

Video Output

1CH BNC for CO-Monitor or 1 BNC for SPOT Monitor

Video Input Level

1.0Vp-p Composite, 75 Ohm Balanced

VGA Output

1 VGA (1280x1024)

Audio Input

1CH RCA

Audio Output

1CH RCA

Audio Backup

YES

Sensor

4 input / 1 output

RS-485

Pan / Tilt / Zoom Control From RS485 Interface

USB Port

2 ports

Mouse

USB mouse

IR Remote Controller

Optional

HDD Support

SATA HDD x 1 (Max. 2TB)

DVD Writer

NO

Display Division

1,4

Title

14 characters

Video Compression

H.264

Audio Compression

ADPCM

Resolution

720x480, 720x240, 360x240 (NTSC)
720x576, 720x288, 360x288 (PAL)

Frame Rate

120, 120, 120 (NTSC)
100, 100, 100 (PAL)

Quality

Highest, High, Normal, Basic, Below Basic

Record Mode

Manual, Schedule, Event, Sensor

Pre-Alarm Recording

10 sec

Post-Alarm Recording

1-60 sec

Motion Detection

Detected Frames: Unlimited / Channel
Area : Programmable Individually
Sensitivity : 10 Levels for Each Channel

Search Mode

Date, Time, Event ( Motion, Sensor ), Camera

Playback Speed

Normal, REW & FF (Recorded Speed x2, x4, x8, x16, x32, x64)
Frame to Frame, Pause

Backup Mode

Network Backup / USB Flash Drive / USB DVD±RW

Network Compression

H.264

Network Software

Licensed Application Software, IE Browser, Symbian,
Windows Mobile, Blackberry,
iPhone, Android Phone

Network Users

1 Admin + 4 Users

Remote Notification

Email message

Service

TCP/IP, SMTP, HTTP, DHCP, PPPoE(ADSL), NTP

Daylight Saving

YES

Watchdog

YES

Event List

10000

Key Lock

YES

Firmware Update

USB Flash Drive

Dimension

188mm (W) x 54mm (H) x 209mm (D)

Power Source

Input 100~240V, Output 12V 3A

Operating Environment

30 ~ 80% RH, 5°C ~ 40°C (41°F ~ 104°F)
