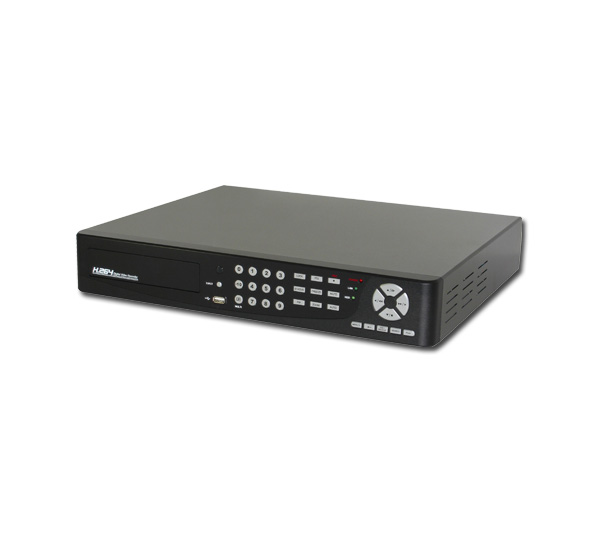

Model Name

RYK-9246

Video System

NTSC / PAL Auto Detec or fixed by software

Video Input

16CH BNC

Video Output

1CH BNC for CO-Monitor or 1 BNC for SPOT Monitor
HDMI (option)

Video Input Level

1.0Vp-p Composite, 75 Ohm Balanced

VGA Output

1 VGA (1280x1024)

Audio Input

4CH RCA

Audio Input Level

0.5~1.4 Vp-p@20K Ohm

Audio Output

2RCA

Audio Backup

YES

Sensor

16 input / 2 output

RS-485

Pan / Tilt / Zoom Control From RS485 Interface

USB Port

2 ports

Mouse

USB mouse

IR Remote Controller

Optional

HDD Support

Support Max.x4 SATA Devices
(HDDx2+DVDx1+e-SATAx1)

DVD Writer

Optional

Display Division

1,4,9,13,16

Title

14 characters

Video Compression

H.264

Resolution

720x480, 720x240, 360x240 (NTSC)
720x576, 720x288, 360x288 (PAL)

Frame Rate

120, 240, 480 (NTSC)
100, 200, 400 (PAL)

Quality

Highest, High, Normal, Basic, Below Basic

Record Mode

Manual, Schedule, Event, Sensor

Pre-Alarm Recording

10 sec

Post-Alarm Recording

1-60 sec

Motion Detection

Detected Frames: Unlimited / Channel
Detected Frames: Unlimited / Channel
Sensitivity : 10 Levels for Each Channel

Search Mode

Date, Time, Event ( Motion, Sensor ), Camera

Playback Speed

Normal, REW & FF (Recorded Speed x2, x4, x8, x16, x32, x64)
Frame to Frame, Pause

Backup Mode

Network Backup / USB Flash Drive / USB DVD±RW/SATA DVD±RW

Network Compression

H.264

Network Software

Licensed Application Software, IE Browser, Symbian,
Windows Mobile, Blackberry, iPhone, Android Phone

Network Users

1 Admin + 4 Users

Remote Notification

Email message

Service

TCP/IP, SMTP, HTTP, DHCP, PPPoE(ADSL), NTP

Daylight Saving

YES

Watchdog

YES

Event List

10000

Key Lock

YES

Firmware Update

USB device

Dimension

430mm (W) x 70mm (H) x 360mm (D)

Power Source

Input 100~240V, Output 12V 6A

Operating Environment

30 ~ 80% RH, 5°C ~ 40°C (41°F ~ 104°F)
