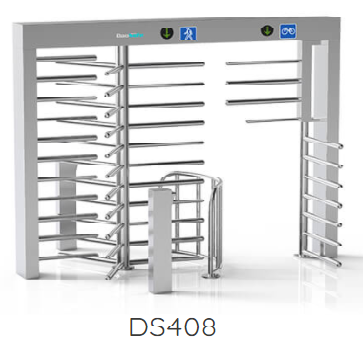

Full Height Turnstile With Bicycle Gate DS408

Mã: DS408
Hãng sản xuất: DaoSafe

Full height turnstile DS408 is the most obvious feature is that the turnstile with bicycle gate for pedestrian and bicycle access. Which is provides a high safety and convenient access solution for both pedestrian and rider with bike.

Mô tả sản phẩm

Model No.	DS408
Brand	Daosafe
Framework Material	304 Full Stainless Steel
Dimension	2608 * 1500* 2240mm
Weight	380kg/pcs
Passage Width	650mm/lane (for pedestrian), 900mm/lane (for bicycle)
Arm Support	120° rotors with 3 sections or 90° rotors with 4 sections
Passing Direction	Single directional / Bi-directional
MCBF	5 million
Power Supply	AC220V/110V, 50/60Hz
Operation Voltage	24V DC
Power Consumption	40W
Operation Temperature	-15 °C - 60 °C
Operation Humidity	0 ~ 95% (No freeze)
Working Environment	Indoor / Outdoor with solid rain protection roof
Flow Rate	35-40 people per minute
LED Indicator	Yes
Emergency	Automatic arm open when power off
Communication	Dry contact, Relay signal, RS485
