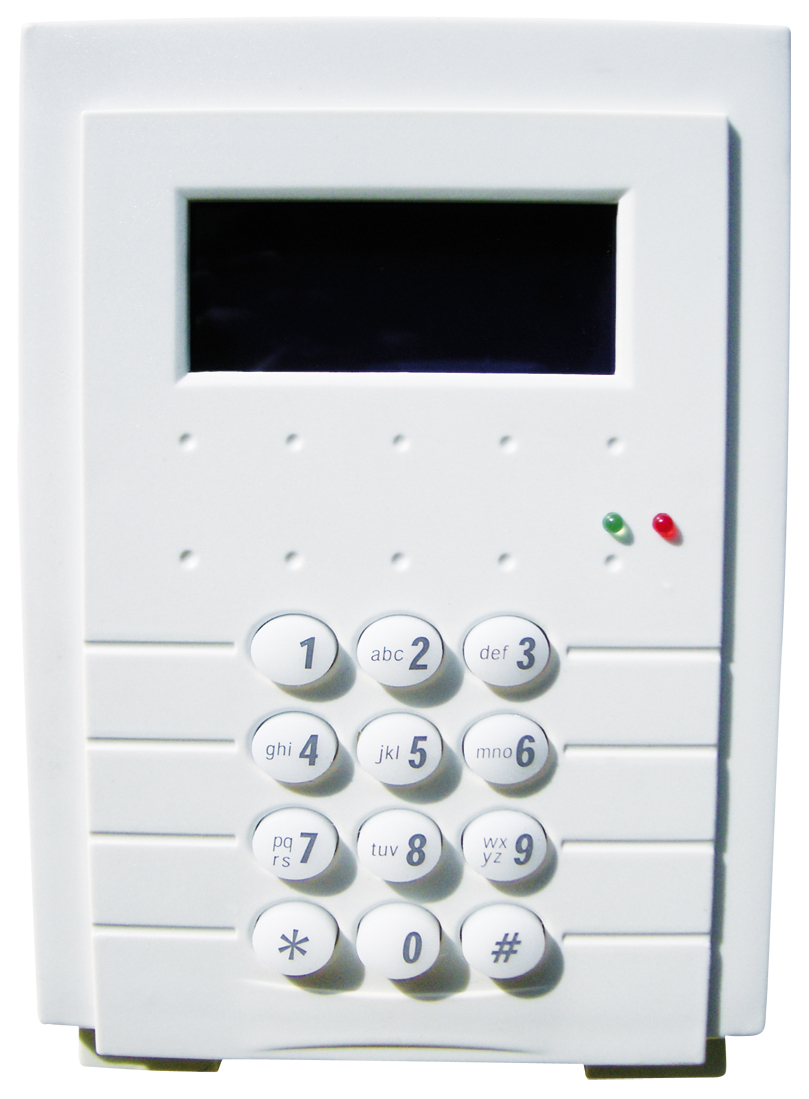

LCD Keypad reader is an advanced Multi-format
RFID Proximity reader with LCD displays and
keypad input with built-in TCP/IP controller.
There are two model where you can select either
RFID card format or MIFARE card format

It is design with easy mounting and hidden
screws and wires. With LED indicator that is
easily viewable on the front panel, user able to
view the status of doors. With built-in internal
buzzer, user is able to hear and notice the status
of the doors.

Specification

• Manufacturer : FALCO
• Country of Origin : Malaysia
• Power Supply : 12V DC, 500mA
• Chassis Color : Peach
• Usage : Display date & Time of clocking
• Read Range : 3.0 – 5.0 cm
• Keypad : 3X4 keypad
• Mode of Operation : Card Only, Card + Pin, Pin Only
• Operating Temperature : 0ºC to 60ºC
• Humidity : 10% to 90% non-condensing
• Card Reader type : Proximity (PEM5008), MIFARE (PMM6008)
• Output Format : Weigand 26-bit, 32-bit
• RF Modulation : ASK at 125 kHz
• Built in Internal Buzzer : Yes
• Character Display : 4 X 16 alphanumeric
• Backlight : yes
• Current Consumption : 0.25A
• Dimensions : 11.5cm (W) X 15.8cm (H) X 3.0cm (D)

 Order Information

PEM5008 : LCD module - Em Proximity + Pin Reader ( Beige color only)

PMM6008 :LCD module - Mifare Proximity + Pin Reader ( Beige color only)
