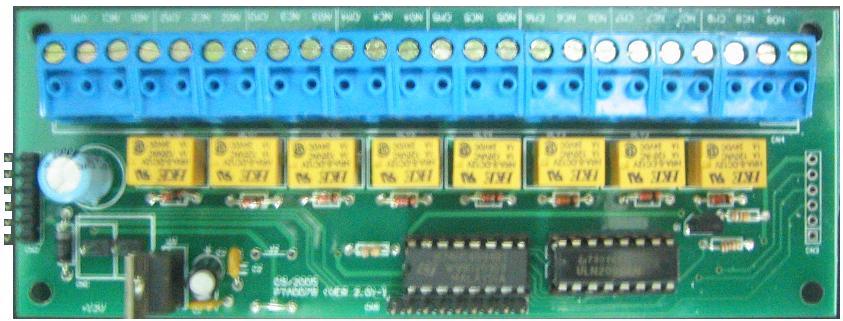

To enable Lift Access Module, hardware and software needed to be enabled. A Falco-IP 8-Output board can be connected to the Falco-IP Controller act as an output triggering to controls the lift button. Each Falco-IP controller are able to cascaded up to a maximum of 64 output points (8pcs of 8 output module).

This board is intended for non-reader type applications where it is desirable to control Lift Access and home automation. This board also provides eight form-C type relay outputs, which can be used to control external equipment, such as lights, gate motors and normally used in Lift Access Control that can control up to 64-floor.

Specification

• Power Supply : 12VDC input (Internal/External)
• Output : 8 Output dry contact to drive external equipment (siren, motor, lift access, etc)
• Relay Output : 10A contact rating
• Current Consumption : 0.25A
• Dimensions : 20mm(H) x 58mm(W) x 138mm(D)
• Lift access control that can control the access for maximum of 64 floors.
• Home Automation control to control 64 external devices such as air-corn, lights, etc.

Order Information

1. For 1-8 Floor :
   FALCO-1DRSMT-TCP/IP-LIFT CTRL(3A)-PCB, FALCO-1DRSMT-TCP/IP-8OUTPUT
2. For 1-16 Floor :
   FALCO-1DRSMT-TCP/IP-LIFT CTRL(3A)-PCB, FALCO-1DRSMT-TCP/IP-8OUTPUT (2 pcs)
3. For 1-32 Floor :
   FALCO-1DRSMT-TCP/IP-LIFT CTRL(3A)-PCB, FALCO-1DRSMT-TCP/IP-8OUTPUT (4 pcs)
4. For 1-64 Floor :
   FALCO-1DRSMT-TCP/IP-LIFT CTRL(3A)-PCB, FALCO-1DRSMT-TCP/IP-8OUTPUT (8 pcs)
